LED STRIP LIGHT
This is an extremely versatile fixture for retrofitting existing offices, warehouses and manufacturing locations or for new construction. Linkable for amazing aesthetic results.

TR12 SERIES
2FT: 20w
4FT: 32w / 40w
8FT: 64w

INSTALLATION
One person, average 15 - 22 minutes
Wired end-to-end for quicker installation
Link brackets available for stringing multiple fixtures straight
Surface mount kits for easier installation and maintenance

TIME SAVERS
Pre-Install Occupancy Sensor(s)
Pre-Install Emergency Backup Battery

IMPORTANT
UL Certified for safety
DLC Premium rated for energy savings
5 Year Manufacturers Warranty

SPECIFICATIONS

SKU Lamp Code Size CCT Watt Efficacy Lumens Sensor IES File LM79 File
57-55049-xx TR12-20W-60-XXK-PDN-A 2' 4K, 5K 20w 135.37 LPW 2748 lm Optional .ies LM79
57-55051-xx TR12-32W-120-XXK-PDN-A 4' 4K, 5K 32w 132.74 LPW 4250 lm Optional .ies LM79
57-55052-xx TR12-40W-120-XXK-PDN-A 4' 4K, 5K 40w 132.02 LPW 5406 lm Optional .ies LM79
57-55056-xx TR12-64W-240-XXK-PDN-A 8' 4K, 5K 64w 133.81 LPW 8482 lm Optional .ies LM79
  - 120-277V, 1-10V Dimming, 120° Beam Angle, >80 Color Rendering Index, IP20, UL Certified, DLC Premium Rated, Non-Flicker.
  - 8' fixtures are pre-wired to link end-to-end but 4' fixtures are not.
  - Please click PRODUCT CATALOG / SPEC SHEET / IES / LM79 to download files.

* Note: XX denotes variable CCT, all products are based on 5000K color temp.
ACCESSORIES
SKU Description Carton Dims. & Weight Pcs./Carton Download
39-93010-A PIR Sensor Use for Low Altitude L 18.31*W 11.81*H 19.31" / 32.19lbs 48 Spec Sheet
39-93012-A PIR Sensor Use for High Altitude L 18.31*W 11.81*H 19.31" / 28.88lbs 48 Spec Sheet
39-93016-A Microwave Sensor Use for Low Altitude L 18.31*W 11.81*H 19.31" / 32.19lbs 48 Spec Sheet
39-93018-A Microwave Sensor Use for High Altitude L 18.31*W 11.81*H 19.31" / 28.88lbs 48 Spec Sheet
57-55110-A Connection kit Surface mounting Use for 4FT/8FT L 16.54*W 8.86*H 12.60" / N/A 50 N/A

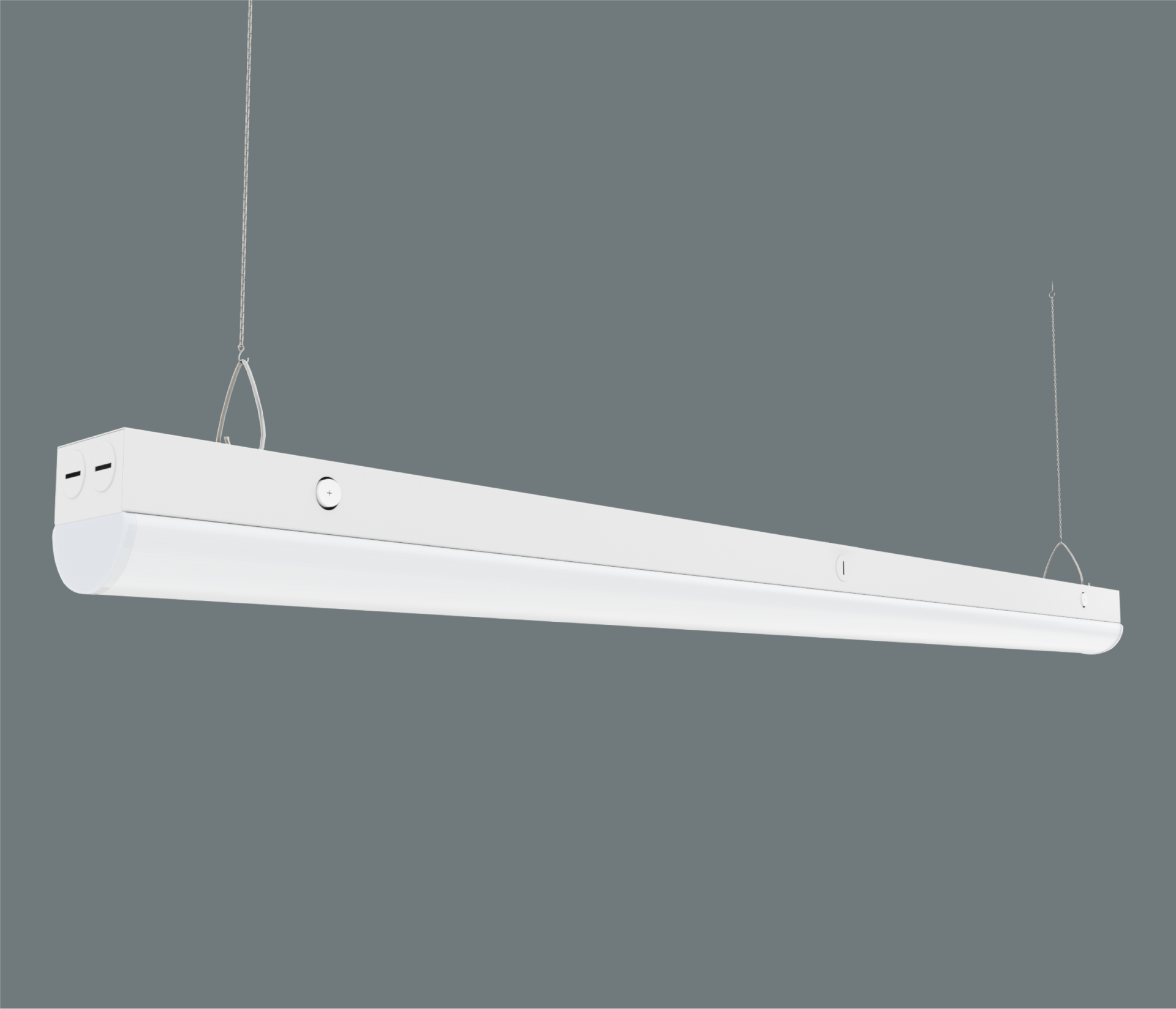

57-55112-A Suspending kit Suspending Installation Use for 4FT/8FT N/A N/A N/A
57-55114-A Connection kit Suspending Installation Use for 4FT/8FT L 5.51*W 3.35*H 4.17" / N/A 17 N/A
78-20178-A Remote Control with Standby Functions and Digital Display L 15.75*W 11.81*H 9.45" / 21.34lbs 78 Spec Sheet
44-33005-A Remote Control with Standby Functions L 15.7*W 11.8*H 9.3" / 19.1lbs 172 Spec Sheet
44-33008-A Remote control On/Off Only L 15.7*W 11.8*H 9.3" / 15.9lbs 380 Spec Sheet
58-92035 Emergency Power 15W L 15.75*W 8.66*H 8.64" / 19.40 Ibs 20 Spec Sheet
DIMENSIONS
Size Prod. Dims & Weight Carton Dims. & Weight Pallet Dims. & Weight
2FT L 23.98*W 2.95*H 3.26" / 2.40lbs 6pcs / L 25.39*W 7.48*H 8.66" / 17.20lbs 600pcs / 50*37*86" / 1720lbs
4FT L 48.03*W 2.95*H 3.26" / 3.75lbs 6pcs / L 49.49*W 7.48*H 11.81" / 26.50lbs 210pcs / 50*37*83" / 927lbs
8FT L 95.98*W 2.95*H 3.26" / 7.19lbs 4pcs / L 97.40*W 7.48*H 8.26" / 32.50lbs 200pcs / 98*38*82" / 1625lbs
